Wheeltop Road EDS TX Groupset
Wheeltop Road EDS TX Groupset
4.8 / 5.0
(5) 5 total reviews
Wheeltop Road EDS TX Groupset - Performance and Reliability
The Wheeltop Road EDS TX Groupset upgrade kit is available with hydraulic or cable brake options to suit your needs. The TX is ready to rip up the tarmac!

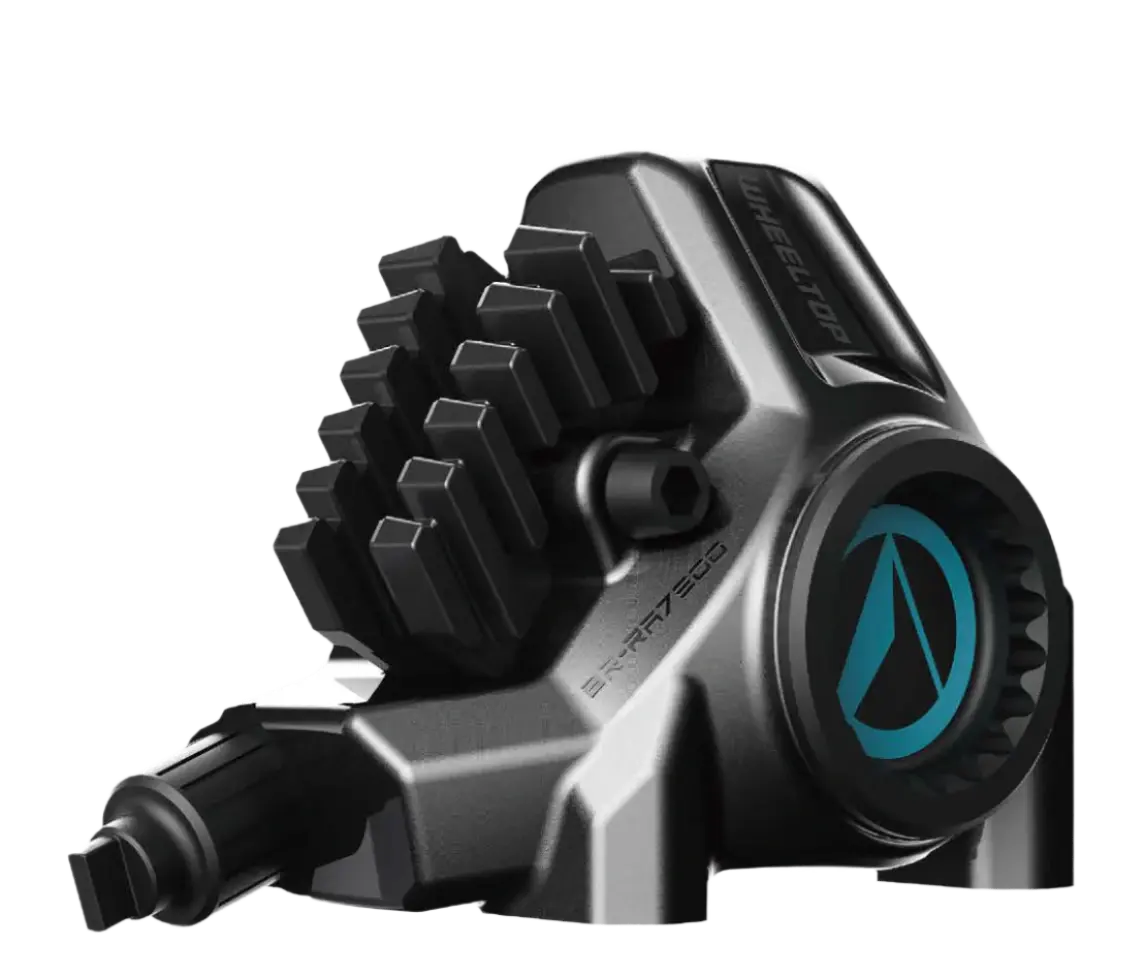

The Hydraulic brake version comes paired with Wheeltop BR-RA7000 hydraulic brake callipers actuated by Wheeltop TX alloy or carbon levers.
As with all EDS systems it can be customized for 3-14 speeds.
Designed to help you lose the shift cables and go wireless, providing you with an easy shift no matter where the ride takes you.
Enhanced Performance with Wheeltop Road EDS TX
The Wheeltop Road EDS TX Groupset is engineered to deliver exceptional performance on the road. It combines lightweight materials with precision engineering, which means you can enjoy faster speeds and smoother rides. Whether you're an amateur cyclist or a seasoned professional, this groupset is designed to meet your needs and exceed your expectations.
Durability for Long-Lasting Use
One of the standout features of the Wheeltop Road EDS TX Groupset is its durability. Built to withstand harsh riding conditions, this groupset ensures that you can ride with confidence. Because it uses high-quality components, you won't have to worry about frequent replacements or repairs, making it an excellent investment for any cyclist.
Easy Installation and Compatibility
Installing the Wheeltop Road EDS TX Groupset is straightforward, so both new and experienced cyclists can upgrade their bikes with ease. Additionally, it is compatible with a wide range of bike models, which means you can enjoy the benefits of this top-notch groupset regardless of your bike's make or model. Therefore, it is an ideal choice for those looking to enhance their cycling experience without hassle.
Specifications
Specifications

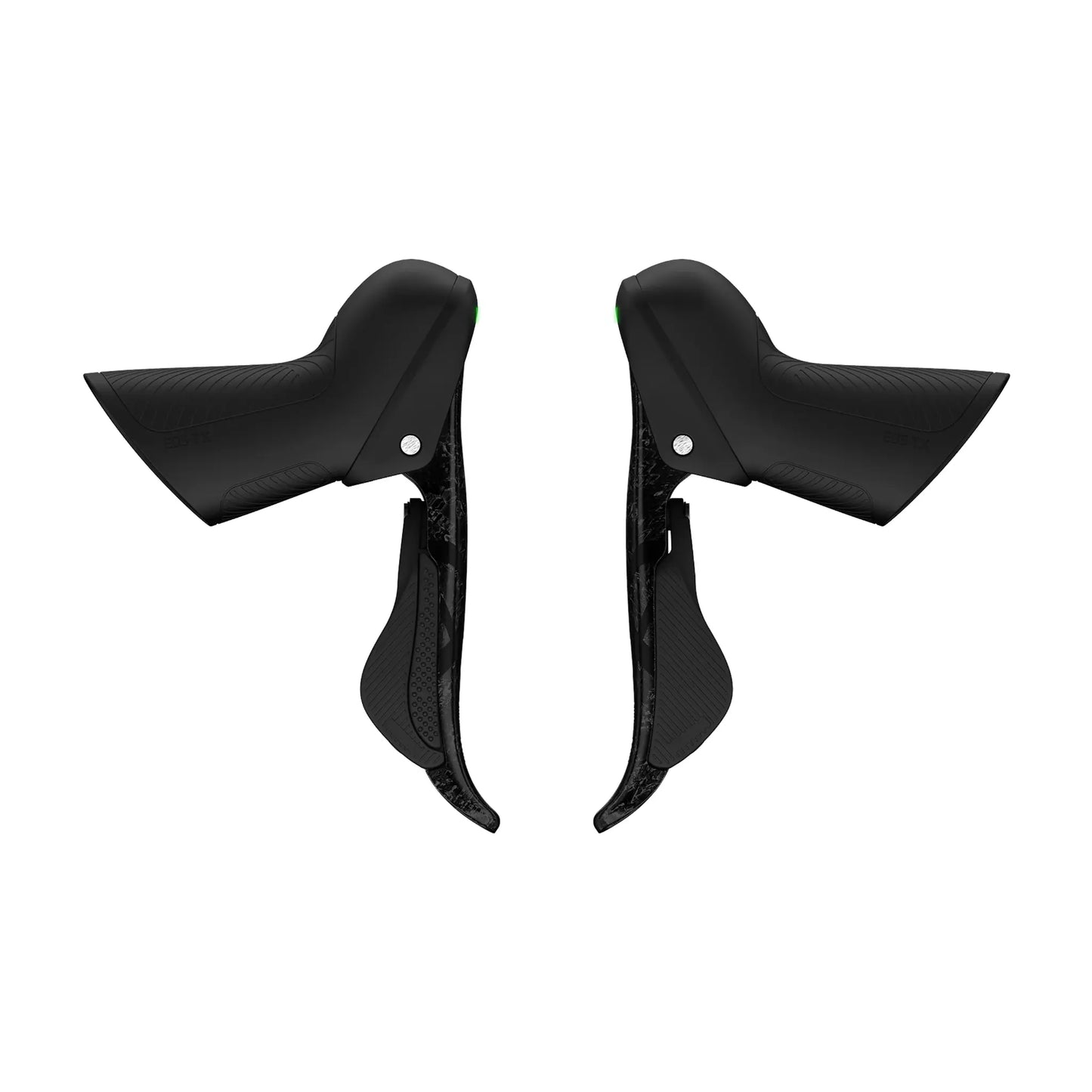

Shifters
|
Hydraulic DiscBrake Lever Length
140mm
|
Cable
140mm |
|
---|---|---|---|
Adjustable Range
8mm
|
8mm
|
||
Battery Type
CR2032
|
CR2032
|
||
Speed Compatibility
L 1/2s R 3-14s
|
L 1/2s R 3-14s
|
||
Weight
L 209g R 213g
|
L 209g R 213g
|
||

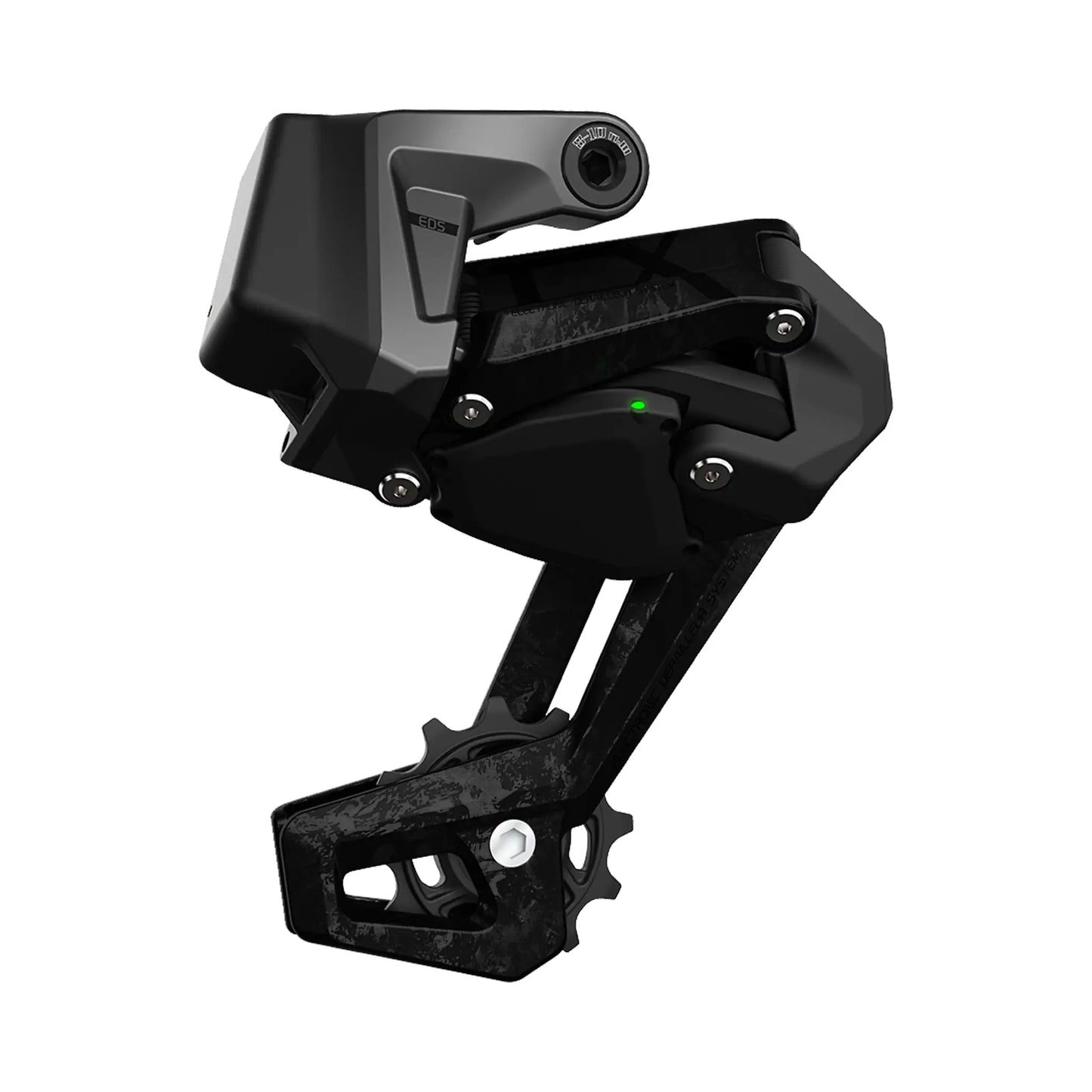

Rear Derailleur (RD)
|
Speed Compatibility
3-14s
|
3-14s
|
|
Minimum Sprocket
10 -11T
|
10 -11T
|
||
Maximum Sprocket
30 -36T
|
30 -36T
|
||
Total Range of Gear Change
36T
|
36T
|
||
Weight
320g
|
320g
|
||
Battery Capacity
800mAh
|
800mAh
|
||

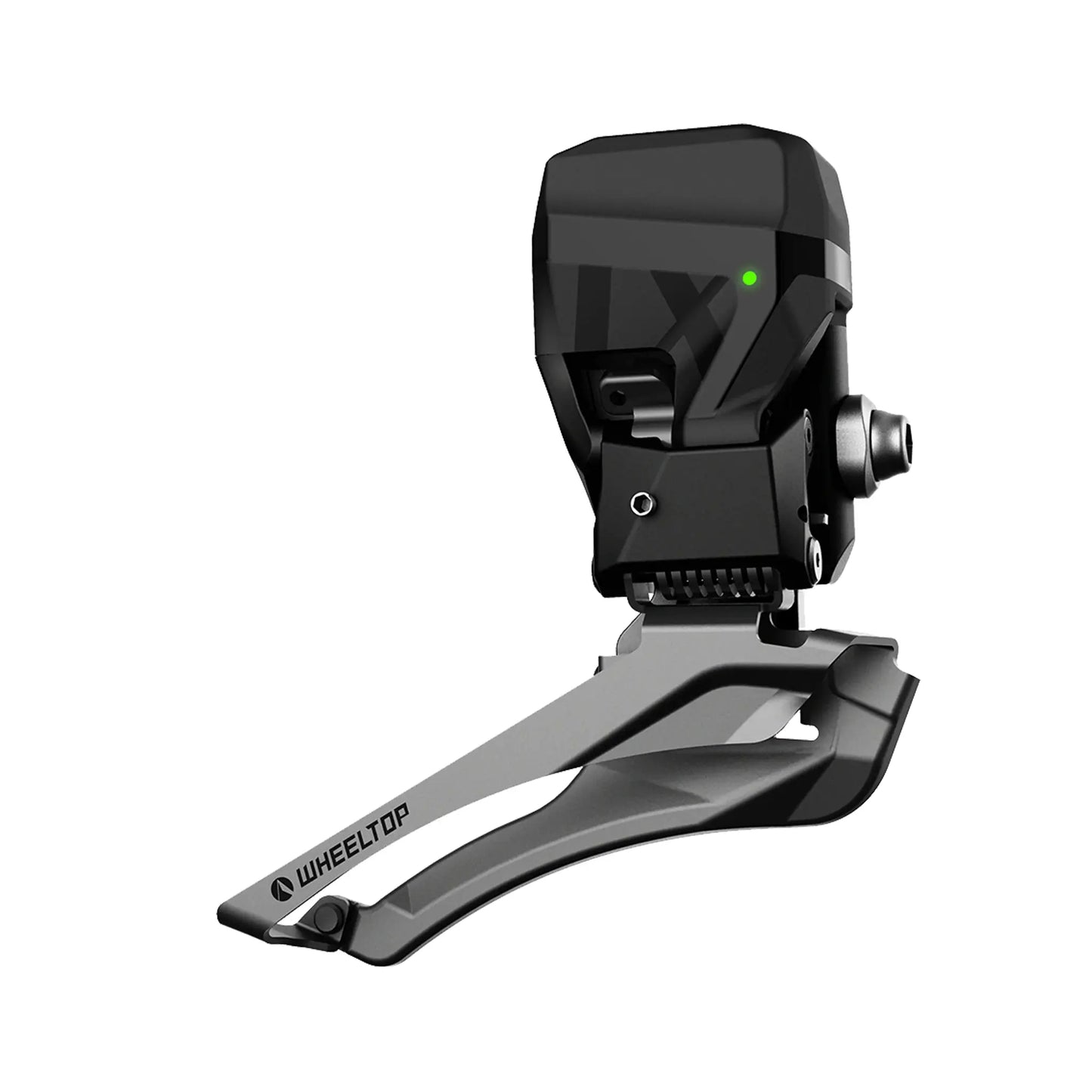

Front Derailleur (FD)
|
Speed Compatibility
1/2s
|
1/2s
|
|
Chainring Compatibility
53T
|
53T
|
||
Total Range of Gear Change
16T
|
16T
|
||
Weight
187g
|
187g
|
||
Angle of Chain
61°-66°
|
61°-66°
|
||
Installation Type
Band-On/Braze-On
|
Band-On/Braze-On
|
||
Battery Capacity
500mAh
|
500mAh
|
||
Hydraulic Disc Brake System
|
Brake Fluid
MINERAL OIL
|
-
-
|
|
Braking
Bilateral Braking
|
-
|
||
Brake Disc Compatibility
140mm/160mm
|
-
|
||
Weight
133g(Single)
|
-
|
||
Brake Pads Type
Compatible with LO4A
|
-
|
||
Oil Hoses Length
F: 900mm R: 1550mm
|
-
|
||
Oil Hoses Type
BH-40/BH-90
|
-
|
Couldn't load pickup availability
Share






Manual
English Version
French Version

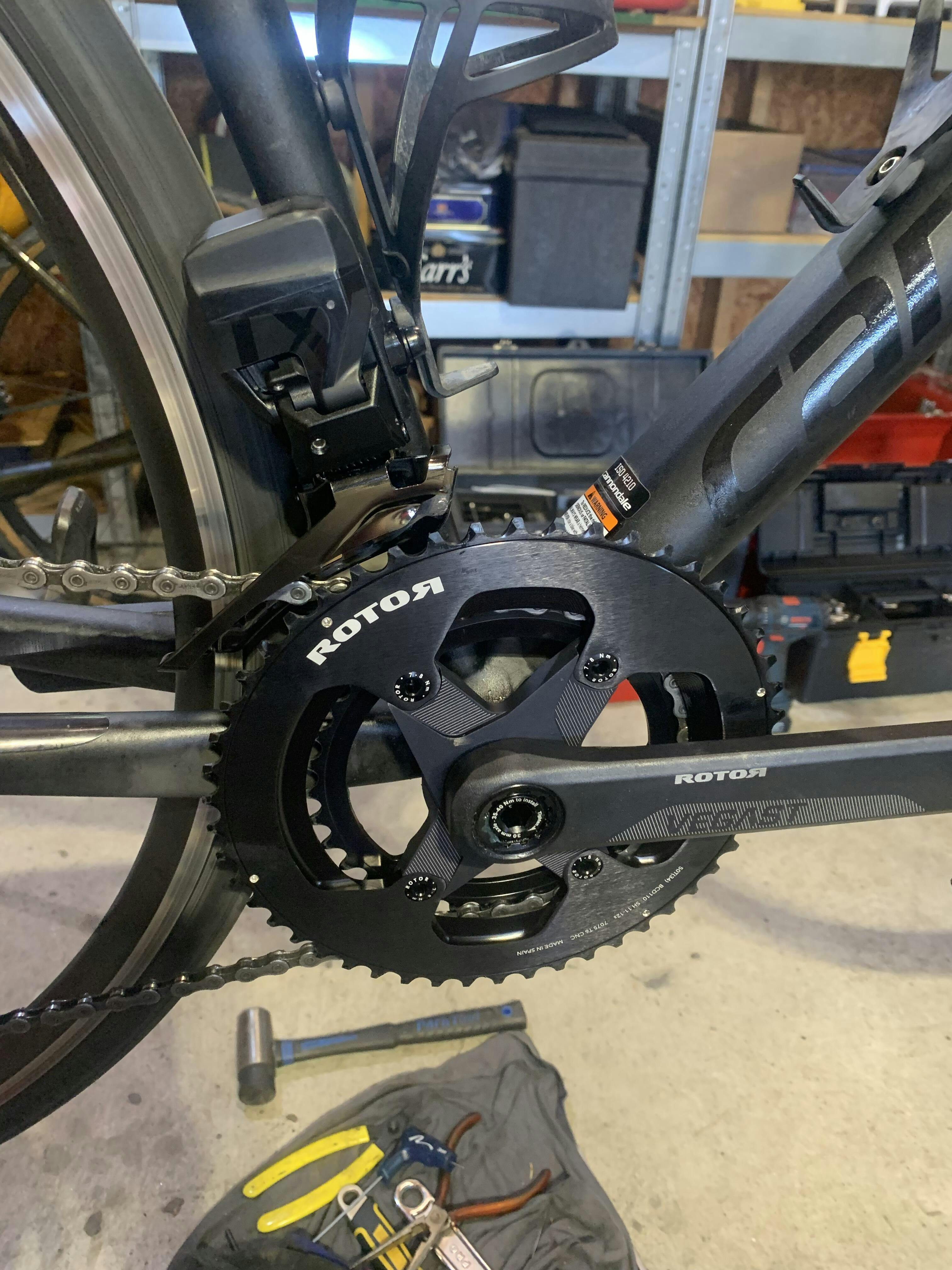

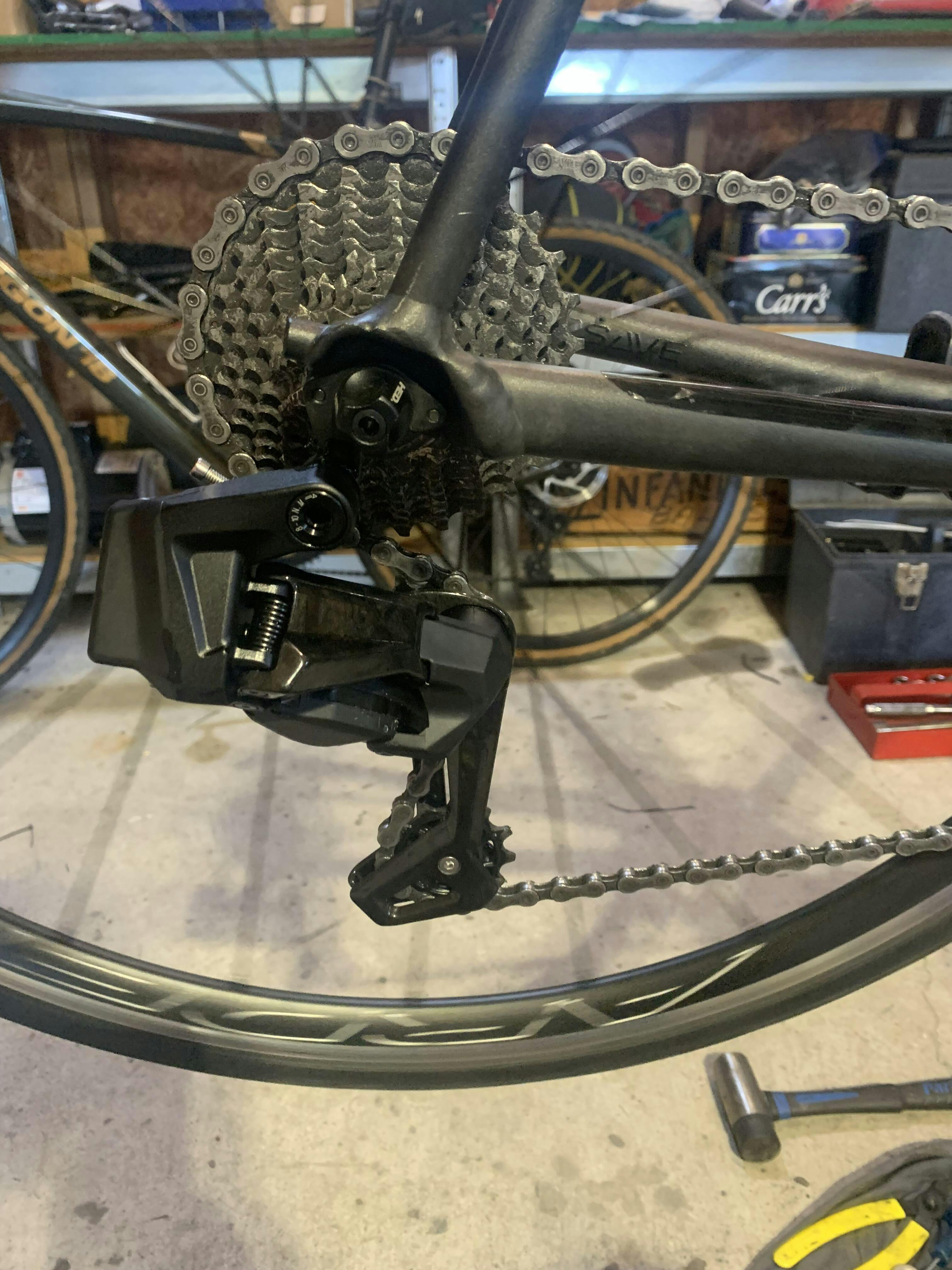

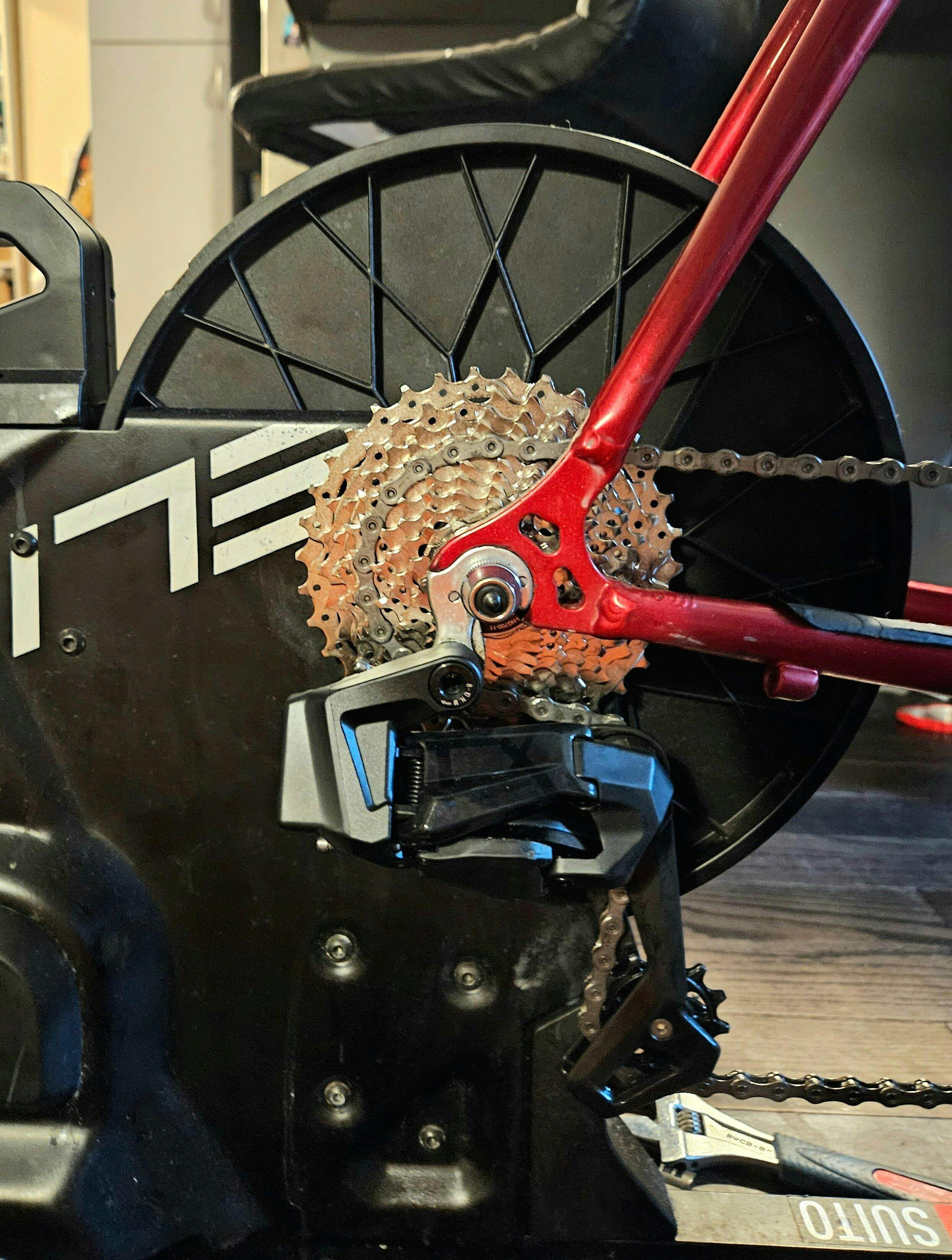

I was able to install it myself on an older 2x10 Shimano 105 bike. Works great! I'm never going back to mechanical shifting.
Parts are durable shifting is smooth and install was easy... has the feel and look of a really high end component
Affordable and great quality. It has more functionality than other big names. Forget Shimano, this is what you need!
Je ne savais pas vraiment à quoi m'attendre. Ça fonction super bien. J'ai eu un bon service pour ma questions pour mon installation. Je le recommande
Tricky getting set-up, particularly the indexing, but does an excellent job once everything is aligned

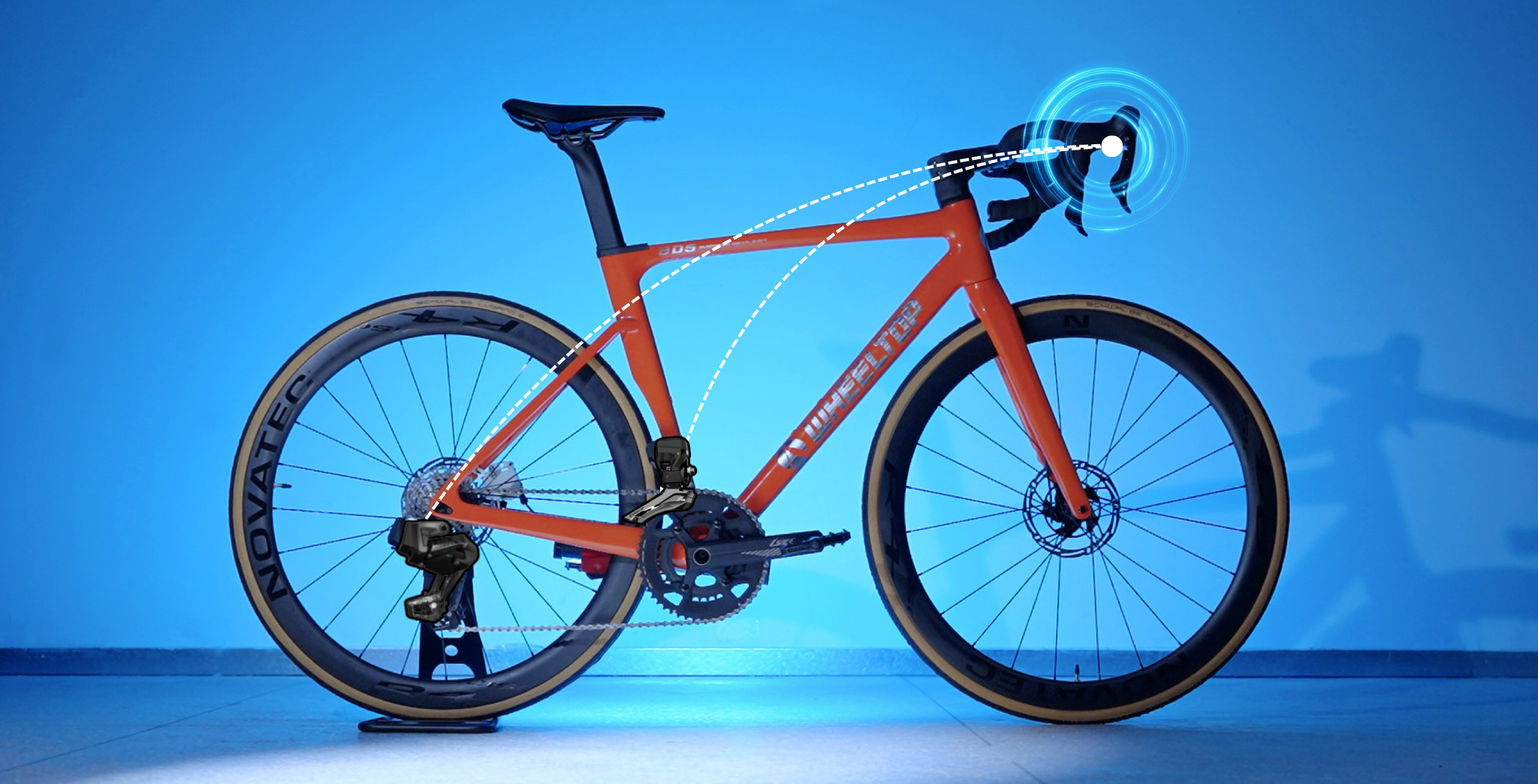

Wireless Connection
Bluetooth and ANT (Adaptive Network Topology) ensure a stable wireless connection between the controller and derailleurs, offering a responsive, smooth, and precise gear shift. Wireless design makes installation easier and offers an untethered ride.
What's in the box?

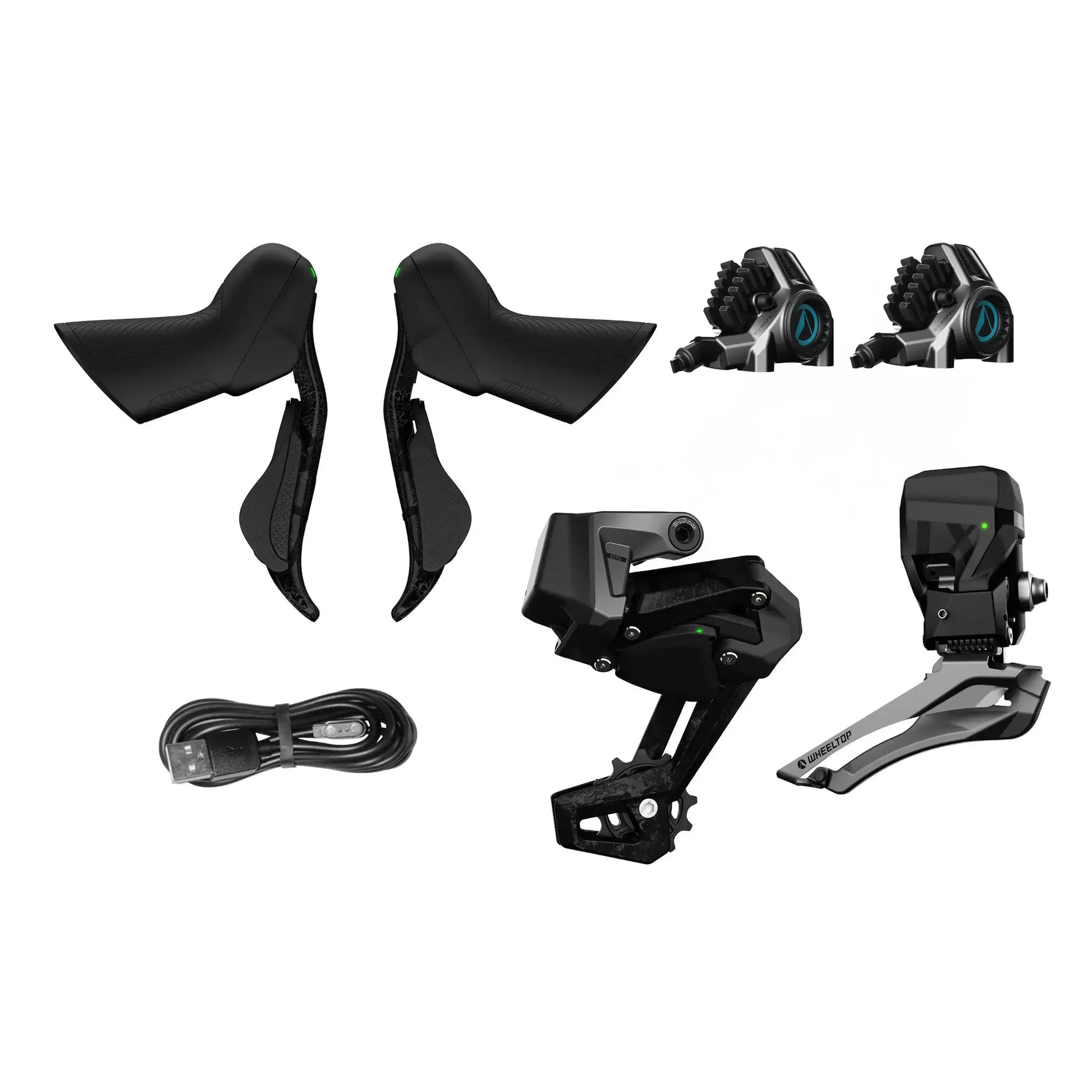

Hydraulic Disc Brake Groupsets
-
Carbon Shifters x2
-
Carbon Rear Derailleur x1
-
Aluminum Front Derailleur x1
-
Hydraulic Disc Brake Caipers x2
-
Hydraulic oil pipe x2
-

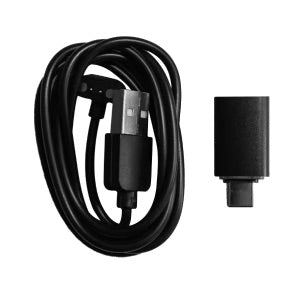

USB-C Power cable x1 USB-C to USB-A adapter x1
-
Instruction for Use x1
-
Spare part kit x1

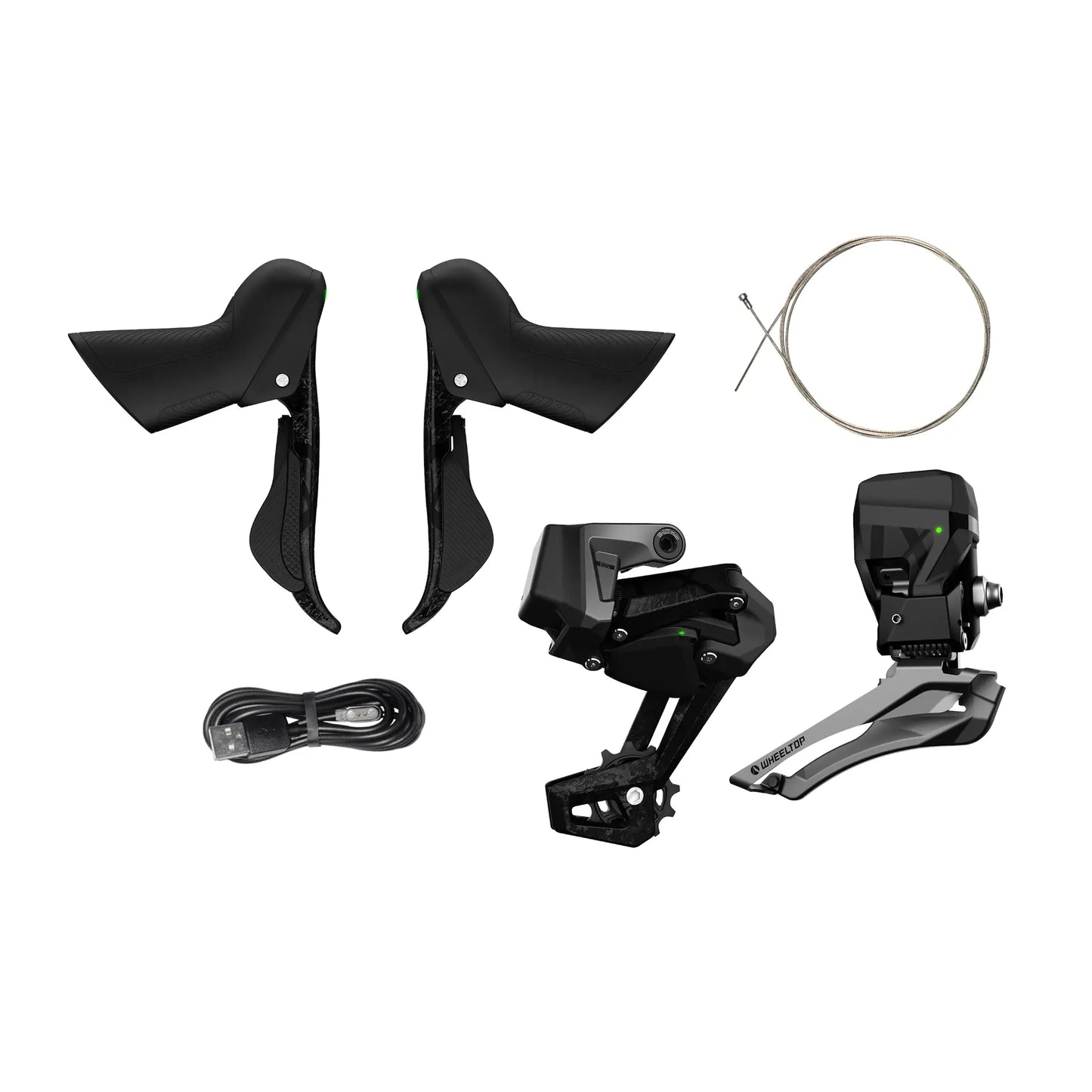

Cable Brake Groupsets
-
Carbon Shifters x2
-
Carbon Rear Derailleur x1
-
Aluminum Front Derailleur x1
-
USB-C Power cable x1 USB-C to USB-A adapter x1
-
Instruction for Use x1
-
Brake Cables x2

3-14 Speeds Customizable Power and Precision
Customize your gear shifting with WheelTop Electronic Derailleur System (EDS). Effortlessly fine-tune up to 14 speeds through the WheelTop app, ensuring smooth and tailored gear shifts that suit your riding style. No matter your cassette speed, WheelTop ensures the best compatibility and precise gear shifting.
